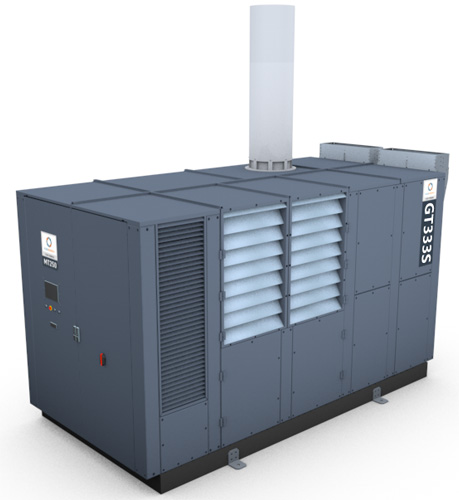

Flex Turbine GT333S

Flex Turbine GT333S


content design image

Product Description

Scaled up from the industrial Flex Turbine GT250S platform, the Flex Turbine GT333S is the most advanced in the industry with up to 85% CHP efficiency and variable inlet guide vanes. Efficient operations and emissions are maintained even when systems are running at part power, without sacrificing the broad fuel flexibility and machine durability. The Flex Turbine GT333S's, is certified to the California Air Resources Natural Gas Distributed Generation Standard, setting the benchmark for clean air, efficiency and fuel flexibility in one compact package.

Specification

Electrical efficiency

33% LHV without gas booster

Electrical power

333 kW

Nominal heat rate (HHV)

11,552 Btu/kWh (12.2 MJ/kWh) without gas booster

11,909 Btu/kWh (12.6 MJ/kWh) with gas booster

Nominal heat rate (LHV)

10,502 Btu/kWh (11.1 MJ/kWh) without gas booster

10,827 Btu/kWh (11.4 MJ/kWh) with gas booster

Frequency

60 Hz / 50 Hz

Type of service

3 phase, wye, 4 wire

Grid-isolated regulation (steady state)

± 0.50% nominal voltage

± 0.30 Hz nominal frequency

Transient handling (linear loads) (recovery within 5 seconds)

± 10% nominal voltage max

± 5 Hz frequency max

Vacuum Infiltration Tissue Processor
Voltage

480 VAC / 400 VAC

Resources

71000067_Flex_Turbine_GT333S_Spec_Sheet.pdf
